APF Pump 202

Cutting edge pumping performance to complement the APF front foil range.

The Pump 202 is designed specifically to complement the Armstrong Pump Foil (APF) front foil range. This stabiliser redefines pump foiling potential with its ultra-low stall speeds, incredible stability and high efficiency to take you further with less effort than ever.

• Easy to fly with ultra-low stall speeds
• Pitch stable to help build a natural pumping cadence
• Co-designed with aerospace engineer Chris Porter

Achieve maximum time on foil

If you’re just learning or already seasoned, a forgiving foil that helps keep you flying makes all the difference when building your pumping skills. The APF’s outline shape, straight leading edge and high camber foil section offer ultra low stall speeds, quick acceleration and a relaxed, efficient pumping cadence optimised for exploring flat water or cruising effortlessly on micro bumps.

Set up for rock solid stability

The APF delivers pitch stability in key phases of flight without completely sacrificing sensitivity and manoeuvrability for expert riders. The specially designed high camber Pump 202 stabiliser works in harmony with the APF to provide excellent pitch stability throughout the entire pump cycle. This solid feeling underfoot lets you focus on building your technique and developing efficiency to go further than ever before.

Designed with Chris Porter

Designed in collaboration with career aerospace engineer Chris Porter, the APF foil shares its DNA with his reputed Crisp 333 and 381 stabilisers. Our approach to finding gains across all areas of the foil design have led to a pump foil that’s truly designed from tip to tip for the discipline.

Recommendations:

PUMP FOIL: All weights

Specifications:

Span: 397mm
Area: 202cm2
Aspect Ratio: 7.8

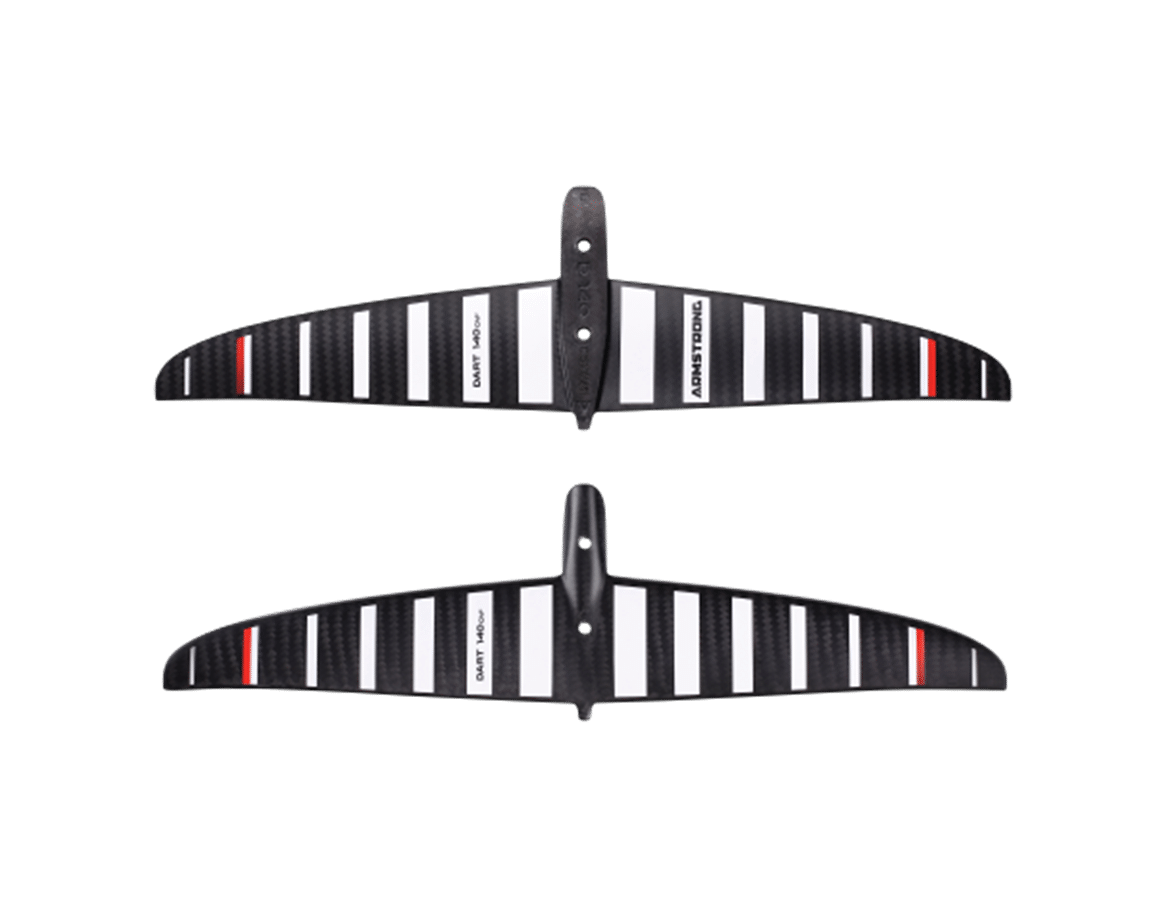

Dart 140 – Lightning fast response with top end speed.

The Dart 140 is our smallest stabiliser and offers all the performance characteristics you’d expect from such a small surface area. Lightning fast response with minimal drag for high speeds, this is the tail of choice for advanced to expert wing, surf, tow and kite foilers in powered conditions.

Recommendations

WING: Rider weight 40kg+ (88lbs+), Advanced/Expert
PRONE/SUP SURF: Rider weight 40kg+ (88lbs+), Advanced/Expert
WAKE: Rider weight 40kg+ (88lbs+), Advanced/Expert
KITE: Rider weight 40kg+ (88lbs+), Advanced

Specifications:

Area: 140cm2
Span: 348mm
Aspect Ratio: 8.7

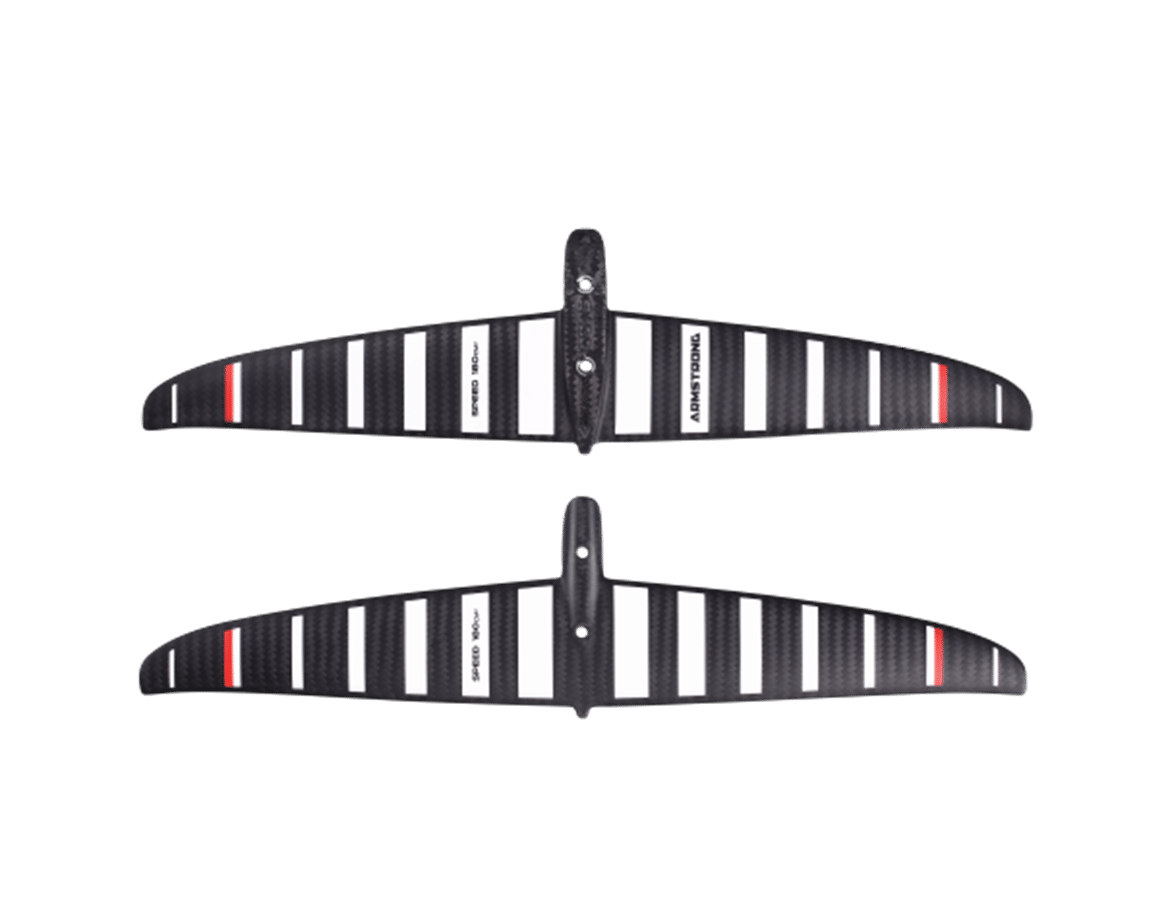

Speed 180 – Highly efficient.

Designed as the evolution of the HA195 stabiliser, the 180 Speed offers greater efficiency and top end of intermediate through advanced wing, surf and downwind foilers. Its high modulus carbon construction is extra stiff for instant pumping and carving response.

Recommendations

WING: Rider weight 50kg+ (110lbs+), Intermediate/Advanced
PRONE/SUP SURF: Rider weight 50kg+ (110lbs+), Intermediate/Advanced
DOWNWIND: Rider weight 50kg+ (110lbs+), Advanced
WAKE: Rider weight 50kg+ (110lbs+), Advanced
KITE: Rider weight 50kg+ (110lbs+), Intermediate/Advanced

Specifications:

Area: 180cm2
Span: 400mm
Aspect Ratio: 9

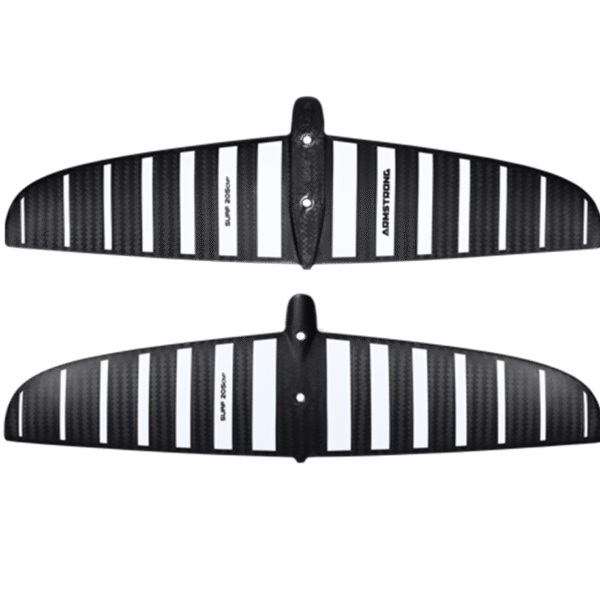

Surf 205 – Fast and responsive to unleash your inner shredder.

The 205 Surf is a highly manoeuvrable stabiliser that enables tight and critical turns in the pocket. This design is derived from the low aspect HS212 (chopped HS232) which dedicated surf foilers found to be the ticket for foil surfing. The 205 builds on that with refinements to the foil section, planform and thickness to unlock the most freedom on the wave.

• Derived from the HS212 (chopped 232)
• Developed in conjunction with the new MA foil range
• New section and thinner profile with more camber
• Lower aspect for surfing in the pocket
• Consistent pitch stability

Zippy Acceleration

The foil section is thin but with pronounced camber, decreasing drag while also improving lift, forward projection and acceleration.

Consistent Pitch

Linear pitch characteristics throughout the full speed range even out front and back foot pressure, minimising lift spikes during acceleration and deceleration on the wave.

Broader Speed Range

A high camber section delivers the perfect blend of lift at low speeds to make getting onto foil easy, yet retains excellent controllability at high speeds.

Specifications:

Area: 205cm2
Span: 344mm
Aspect Ratio: 5.9

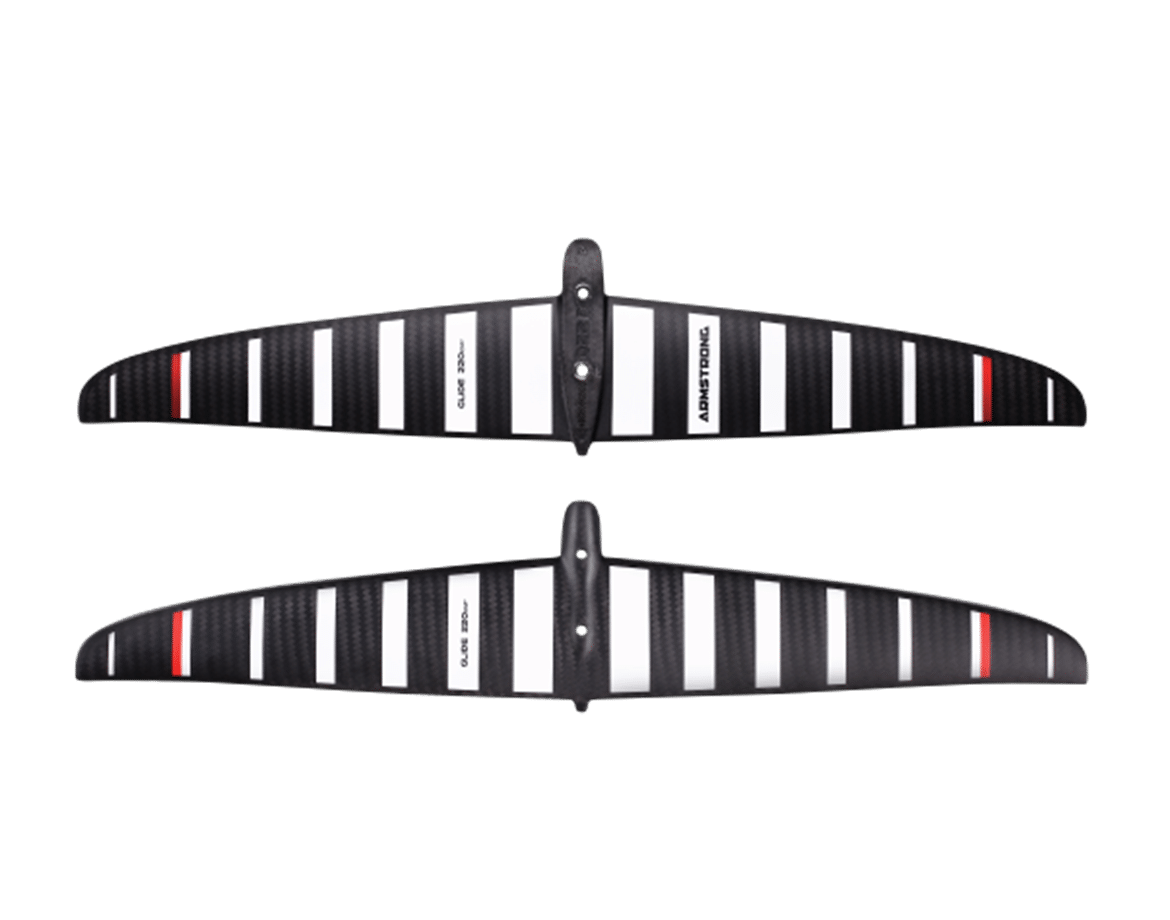

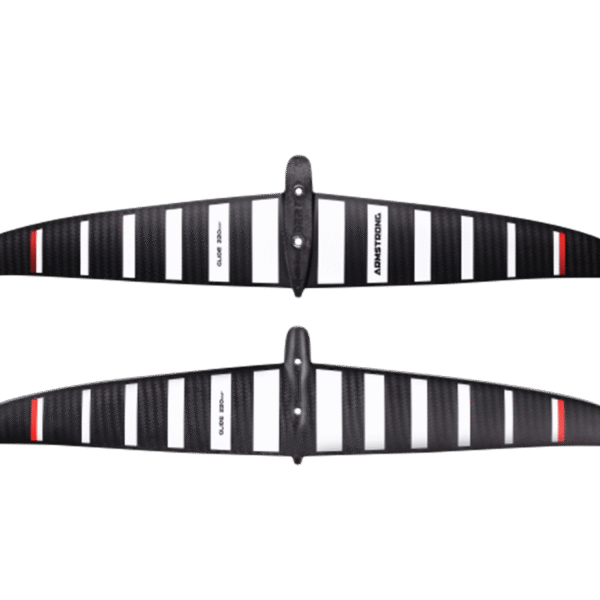

Glide 220 – Glide with effortless pumping.

The Glide 220 is our stabiliser of choice when seeking the greatest glide and pump over long distances. It caters to intermediate through advanced riders pursuing lightwind winging, downwinding and flatwater pumping.

Recommendations

WING: Rider weight 60kg+ (132lbs+), Intermediate/Advanced
PRONE/SUP SURF: Rider weight 60kg+ (132lbs+), Intermediate/Advanced
DOWNWIND: Rider weight 60kg+ (132lbs+), Intermediate/Advanced
WAKE: Rider weight 60kg+ (132lbs+), Intermediate/Advanced
KITE: Rider weight 60kg+ (132lbs+), Intermediate/Advanced

Specifications:

Area: 220cm2
Span: 462mm
Aspect Ratio: 9.7

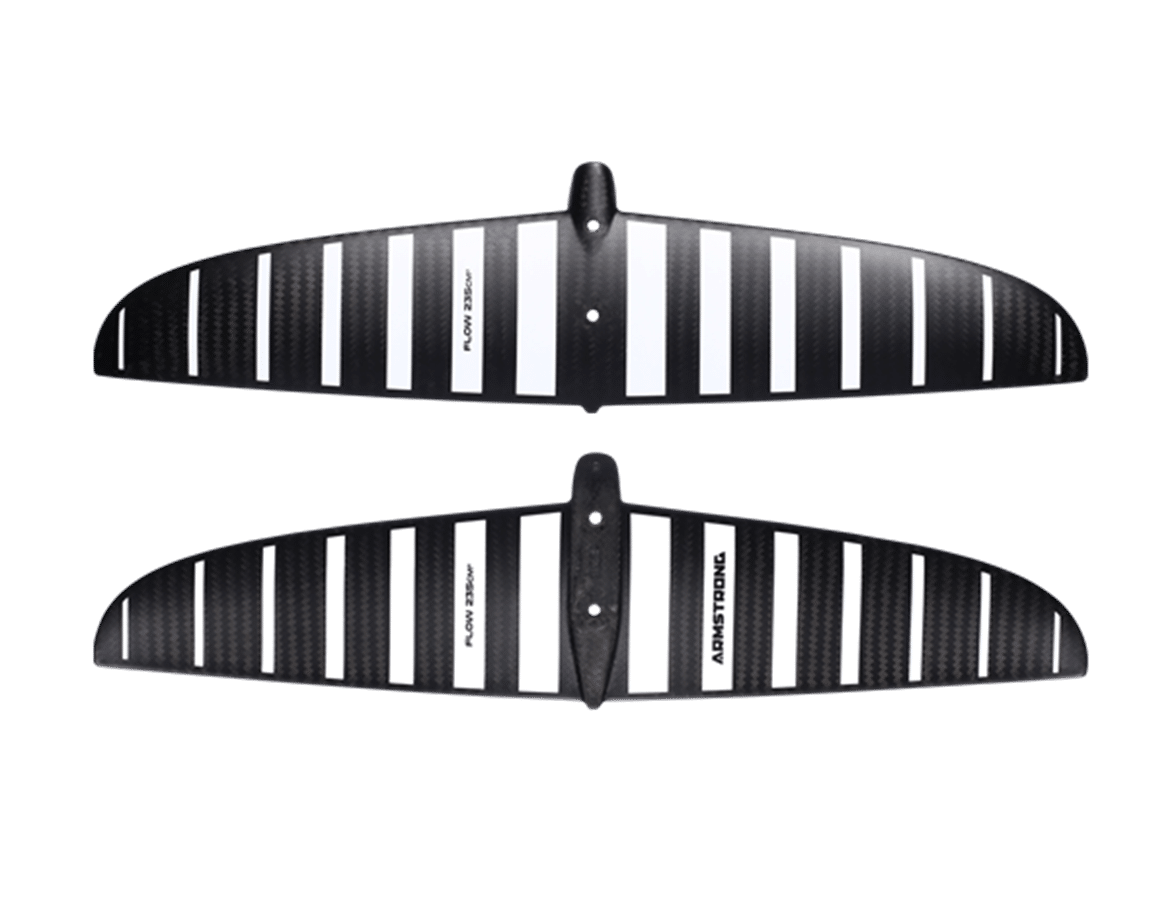

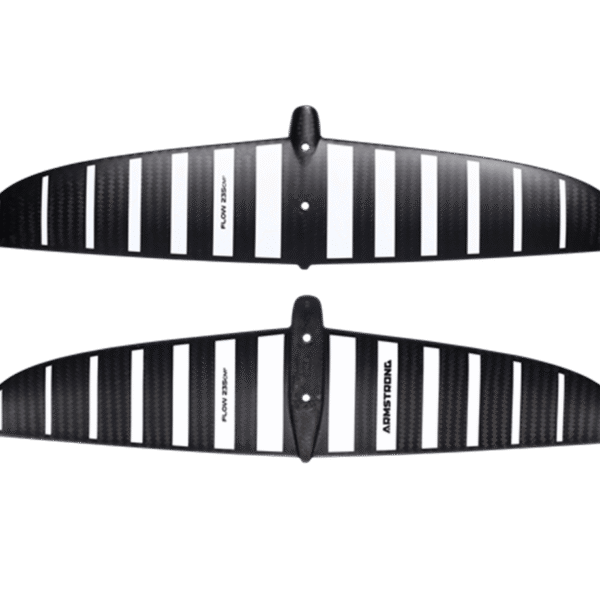

Flow 235 – It’s all in the name.

The 235 Flow’s name says it all! It’s smooth and predictable, inspiring your confidence and flow. Building on the much-loved HS232, this stabiliser adds a new section for consistent pitch stability, an increased projected aspect ratio and a refined planform to deliver an easy and free feeling ride. If you enjoy several foiling disciplines and want one stabiliser to cover them all, the Flow 235 is for you.

• Derived from the much-loved HS232 platform
• Developed in conjunction with the new MA foil range
• New section and thinner profile with more camber
• Higher projected aspect ratio for improved glide
• More responsive for pumping
• Consistent pitch stability

Zippy Acceleration

The foil section is thin but with pronounced camber, decreasing drag while also improving lift, forward projection and acceleration.

Consistent Pitch

Linear pitch characteristics throughout the full speed range even out front and back foot pressure, minimising lift spikes during acceleration and deceleration on the wave.

Broader Speed Range

A high camber section delivers the perfect blend of lift at low speeds to make getting onto foil easy, yet retains excellent controllability at high speeds.

Specifications:

Area: 235cm2
Span: 386mm
Aspect Ratio: 6.4
