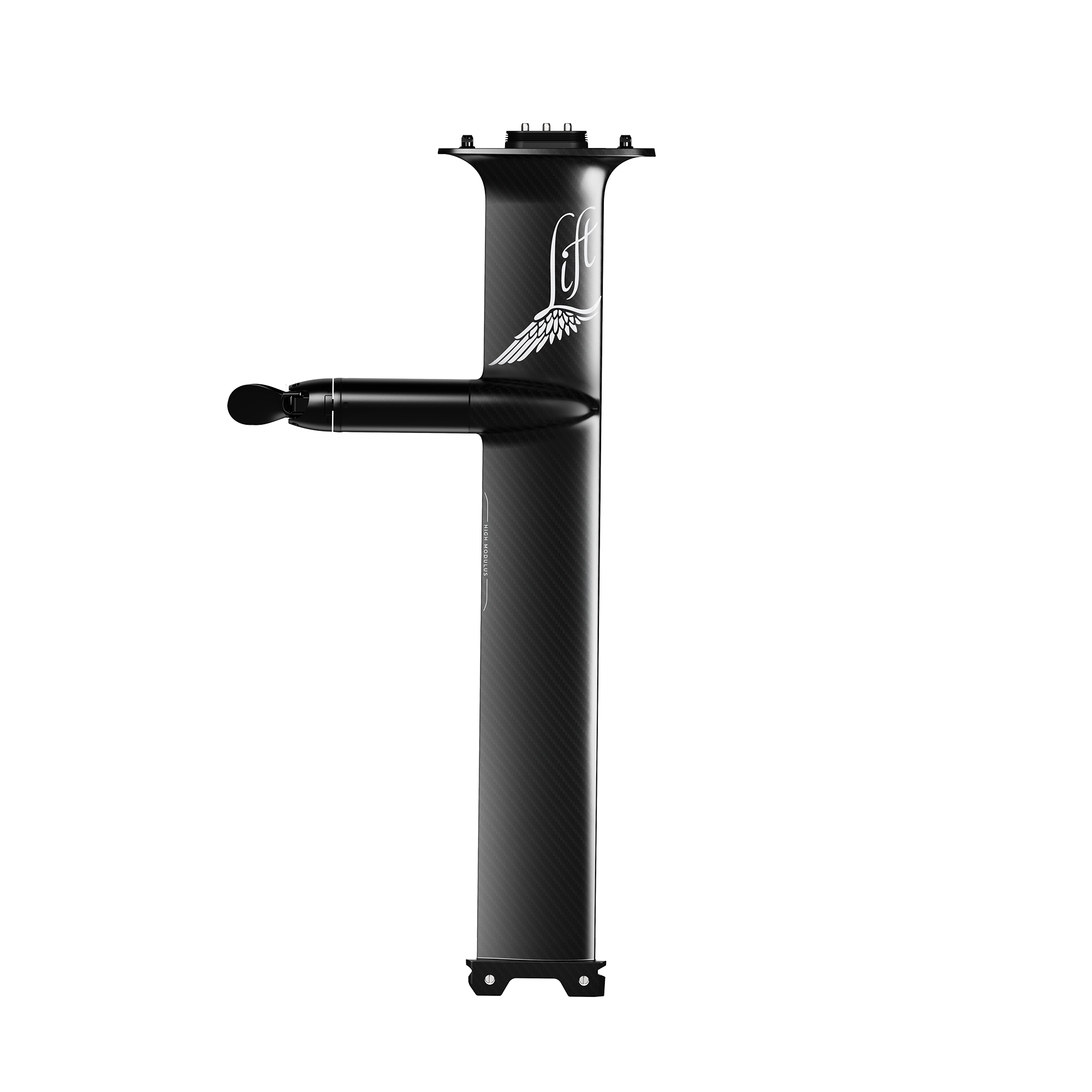

LiftX 32″ Carbon LCS High Mount Propulsion Mast (No Case)
$2,810.00
2 in stock
The 55 High Mount Propulsion is a surf-forward upgrade for riders chasing faster lift-offs and uninterrupted lines. Part of the Lift Connect System (LCS), it clicks into any LIFTX board and runs our 55mm motor propulsion, featuring a fully integrated nose cone and higher motor placement on the mast for quicker lift and zero drag once on foil.
The motor sits fully submerged during takeoff and disappears once you’re on foil. This setup means earlier ups, no ventilation, and a clean ride. Just pure glide, and total control underfoot.
Like every Lift propulsion, it runs our direct-drive motor with Quiet Ride Technology. No gears, no noise just smooth, near-silent power.
HIGH vs. LOW MOUNT
- High mount means earlier lift and no motor
drag. - Low mount is perfect for downwind
sprints and learning.
| Mast Length | 32″ (xx cm) |
| Mast Material | Carbon Fiber |
| Weight (no propeller installed) | 8.5 lbs (3.9 kg) |
| Motor Position (rocker to mid-motor) | |
| Motor Diameter | 55 mm |
| Maximum Sustained Cruising Power | 3800W (5.1 hp) |
| Maximum Sustained Cruising Thrust | Under 95 lbs |
| Included Propeller | LCS Folding Glide Propeller |
| Board Compatibility | LIFT5, LIFT5 F, LIFTX |
⚠️ IMPORTANT: It is critical all eFoil equipment is turned off and the battery is disconnected before working with or around the motor or propellers.
- Avoid contact with the spinning propeller, as it can cause severe injury or death.
- Keep your fingers, toes, and body parts clear of the propeller at all times.
- Do not handle the propeller while the battery is installed in the board.
- Do not handle your propeller in the water.
Lift spec sheet
- Motor: 55mm, high mount
- Weight: 8.5 lbs (3.9 kg), propulsion only, propeller not included
- Board to motor center: 10″ (vs 28.3″ on the Low Mount), so the motor clears the surface sooner once you’re on foil
- 55mm mount options (board to motor center): Low Mount 28.3″ (standard on LIFTX), High Mount 10″, Ultra-High Mount 7″
- Propeller: ships with the LCS Folding Glide Propeller (1.25″ blade, 5.6″ pitch, 6″ diameter). The LCS Folding Power Propeller (1.8″ blade, 6.3″ pitch) is available as an upgrade for more thrust at takeoff and more speed under power.
