Lift Ultra-High Mount Propulsion Mast

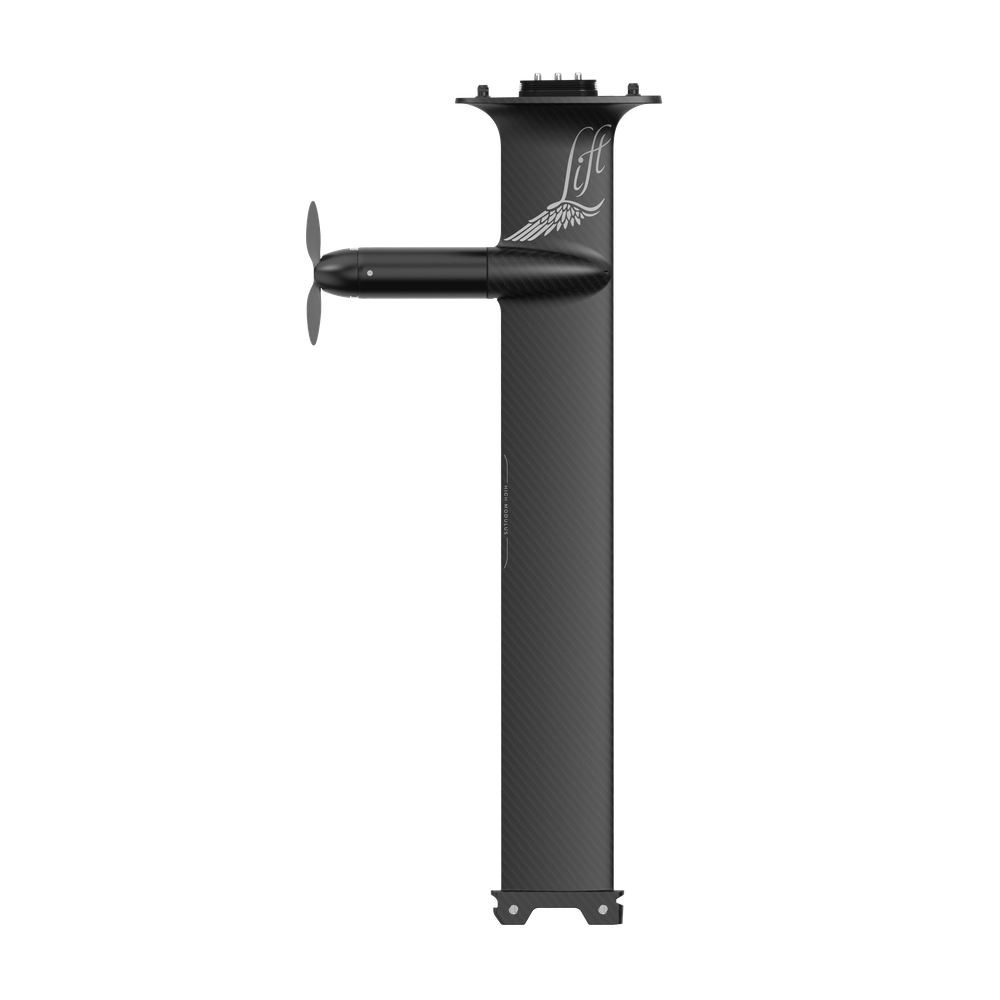

The 33″ LCS Carbon 55 Ultra-High Propulsion places the motor 7 inches below the board, the highest motor position in Lift’s line. Once you’re on foil and riding the energy of the water, the motor clears the surface and drag drops to the mast and wing. The 33 inch carbon mast adds ride height over the 32 inch mounts, more room to carve, turn, and pump. It clicks into any LIFTX, LIFT5, or LIFT5 F board through the Lift Connect System and ships with the LCS Folding Glide Propeller installed.

HIGH vs. LOW MOUNT

• High mount means earlier lift and no motor
  drag.
• Low mount is perfect for downwind
  sprints and learning.

⚠️ IMPORTANT: It is critical all eFoil equipment is turned off and the battery is disconnected before working with or around the motor or propellers.

• Avoid contact with the spinning propeller, as it can cause severe injury or death.
• Keep your fingers, toes, and body parts clear of the propeller at all times.
• Do not handle the propeller while the battery is installed in the board.
• Do not handle your propeller in the water.

Lift spec sheet

• Motor: 55mm, ultra-high mount
• Weight: 9.0 lbs (4.0 kg), propulsion only, propeller not included
• Board to motor center: 7″, the highest motor position Lift builds
• Mast length: 33″, one inch longer than the other 55mm propulsions
• 55mm mount options (board to motor center): Low Mount 28.3″ (standard on LIFTX), High Mount 10″, Ultra-High Mount 7″

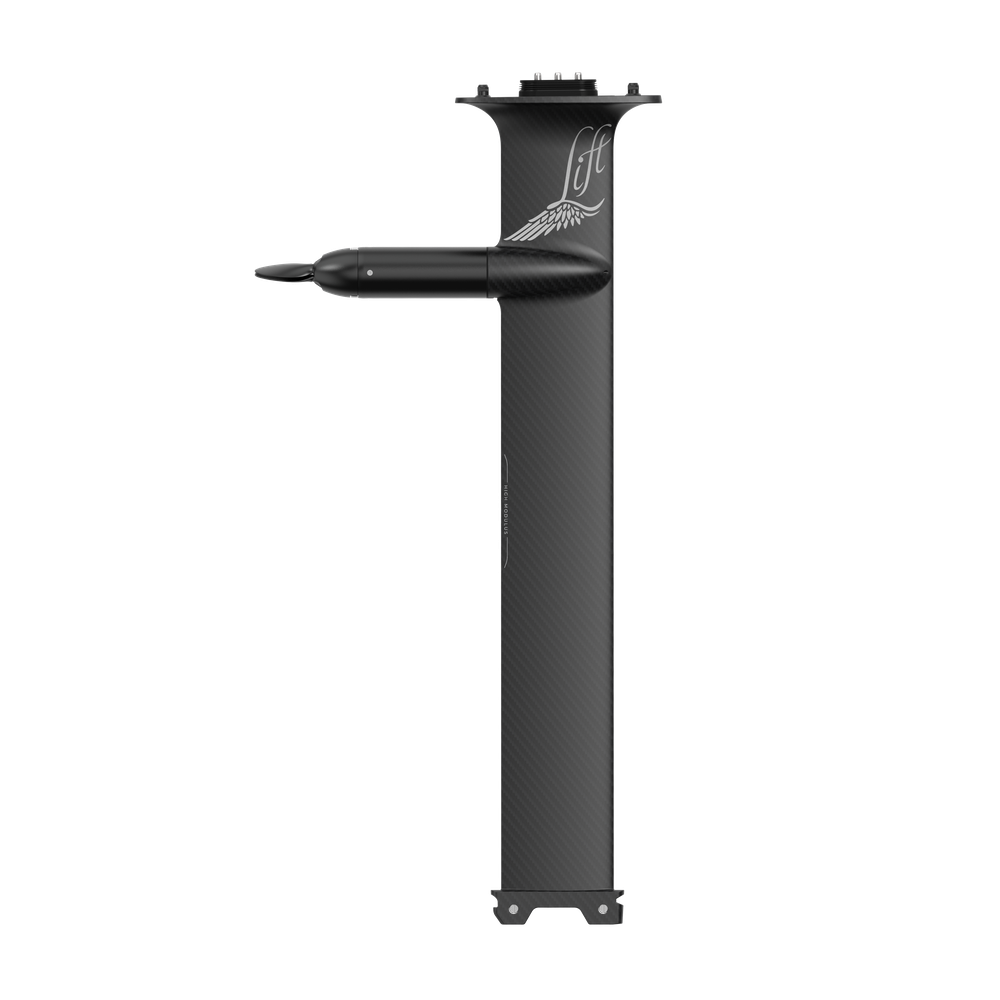

• Propeller: ships with the LCS Folding Glide Propeller (1.25″ blade, 5.6″ pitch, 6″ diameter). The LCS Folding Power Propeller (1.8″ blade, 6.3″ pitch) is available as an upgrade for more thrust at takeoff and more speed under power.
