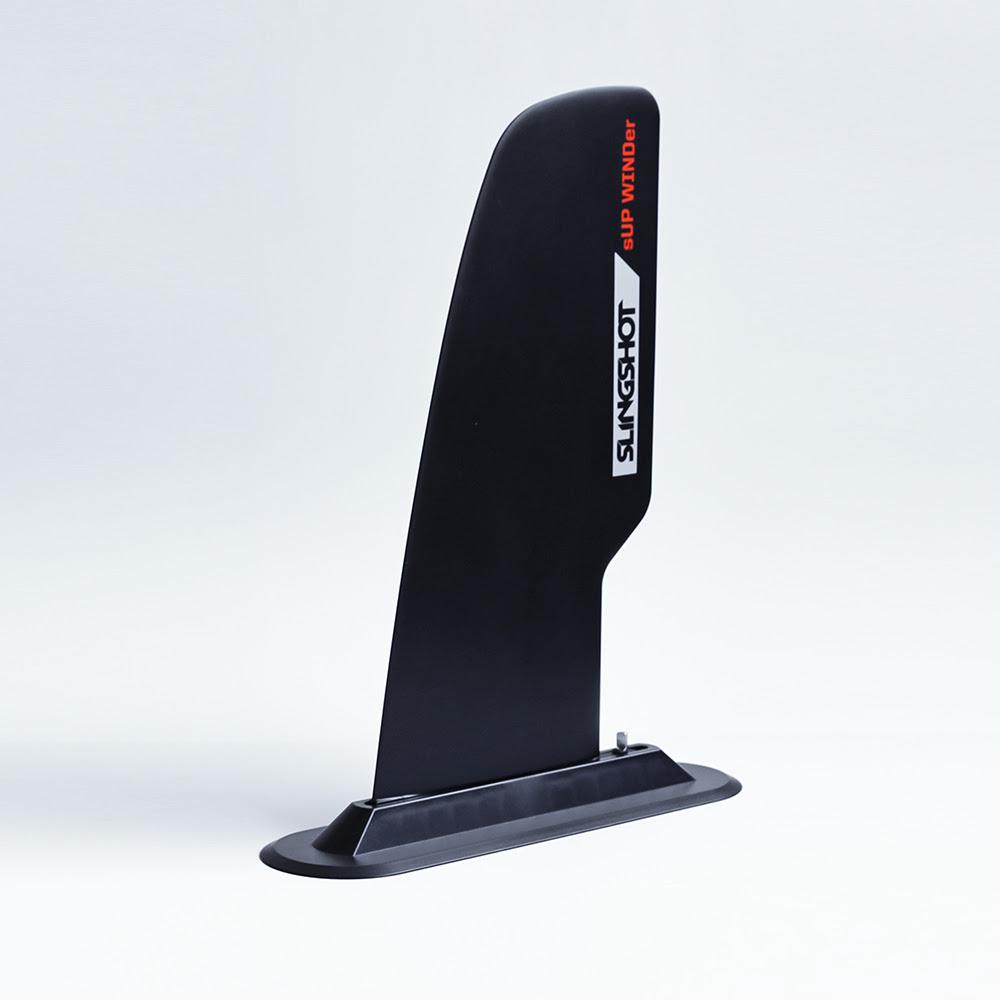

Slingshot SUP WINDer SUP KEEL 2023

WHY YOU’LL LOVE THE SUP WINDer

STEP BY STEP

STEP 1. Remove the keel fin from stick on A box, notice the 3m backing.

STEP 2. Center the sUP WINDer at 75 centimeters from the middle of the rear fin track. There are center line indicators on the sUP WINDer but you still need to find the center line of your board. Tie a string and loop around the rear fin. Pull string all the way to the center point of the nose. Tape it down and that gives you your center line and helps you line everything up straight.

STEP 3. Clean area with rubbing alcohol. Make a mark at 75 centimeters. Remove string.

STEP 4. Fold edges up on the sides to make a good crease, this will keep them out of the way. Remove the sticky back and press the hard centerpiece down firmly. Triple check for straightness then work from the inside to outside to push the edges down and remove bubbles.

STEP 5. Wait for the adhesive to set (preferably 12 hrs.) before submersing into water.

Step 6. Now the A Box is on the board. Remove the rear bolt, put the nut in the track slide and slide the  center keel in and screw it down.
