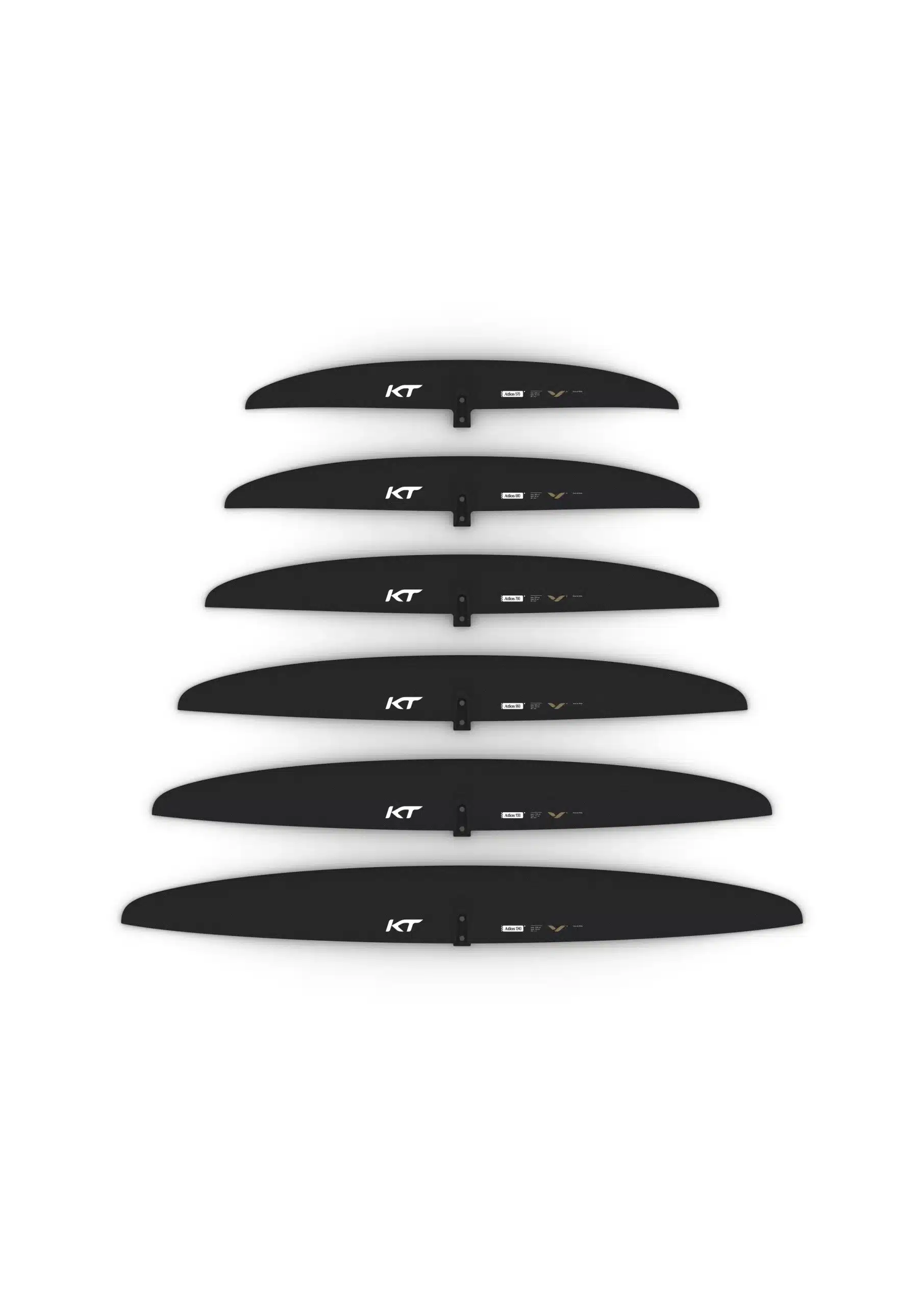

KT Atlas Series High Aspect Front Wings 2025
$575.00 – $717.00
KT hardware sold separately. Find it here.
Description
KT ATLAS SERIES OVERVIEW
Unmatched efficiency, glide, acceleration and manoeuvrability for experienced riders.The Atlas series is crafted for intermediate to advanced riders seeking exceptional glide, acceleration, and a broad speed range without compromising turning ability. Designed to optimise lift over a reduced surface area, the Atlas features a unique rear-loaded camber profile and low sweep, allowing it to operate efficiently even at surprisingly low speeds. Tuned for early lift, effortless pumping, speed generation, and high resistance to stalling or “dropping out,” it delivers consistent performance across a wide range of conditions. Inflected wingtips make breaching turns and ventilation virtually unnoticeable, making the Atlas ideal for any progressing wing, surf, or downwind foiler. Despite its high aspect shape, the Atlas offers responsive manoeuvrability, carving, and glide, giving riders the freedom to master advanced manoeuvres, tacks, and enjoy a smooth ride at any speed
OUR TAKE
The Atlas range is the highest aspect in the line-up at around 11 AR, sizing from 570 to 1340. Kane’s personal every day foil! With more focus on pump & glide, the Atlas is an excellent choice for winging and downwind SUP Foiling.
Lots of camber in this design may be a game of compromises, but Kane has figured out a way to lower the stall speed and ride a smaller area reducing the wetted surface…this translates to better top end and an overall wide speed range.
Most people are riding these at 10-20% smaller than a standard HA front wing. With a huge focus on the connection points, the design team has put loads of time into making this system stiff and future proof. The 15.5mm thickness/125mm cord on the mast offers a low drag profile, yet keeps the system stiff without breaking the bank.
Zero mast taper offers a consistent feel, and a beefy connection to the shortened base plate maximizes the space in the track box. A base plate shim can be used and is provided with each foil kit, as is the complete hardware kit with tail shims.
All hardware is coated with e-glass to prevent the corrosion/electrolysis between the carbon and aluminum. Tail shims are chosen based off of the addition of the mast number and front wing number (the resulting number shim is used). This system allows for very consistent tuning across the KT Foil line-up (no more guessing!).
Tails can be mixed and matched as well, so if riding the Atlas in the surf or winging it in choppy water, you may consider trying the Nomad tail. The alloy fuse is offered in two sizes, the shorter 56cm is great for surf/wake foiling, or loosening up a big front wing. The longer 63cm fuse is ultra pitch stable and easier to ride. The 63cm fuse has become our standard issue, go-to length for winging and DW SUP foiling here in the Gorge.
FEATURES:
Glide-Oriented Geometry: Low sweep with center of lift aligned for maximum efficiency at design speeds.
Advanced High Camber Airfoil: Optimised for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
Wide Range Efficiency: Maintains performance from low to high speeds.
Precision and Control: Offers reactive control for tight turns and deep carves.
Inflected Wingtips: Maximises control through surface-piercing breaches with high resistance to ventilation.
High-Speed Performance: Exceptional acceleration and controlled top speeds.
Progression-Driven Design: Crafted to support and elevate rider progression.
Optimised for Surf and Downwind: Tailored for surf, wing, kite, or SUP foilers seeking ultimate freedom and performance.

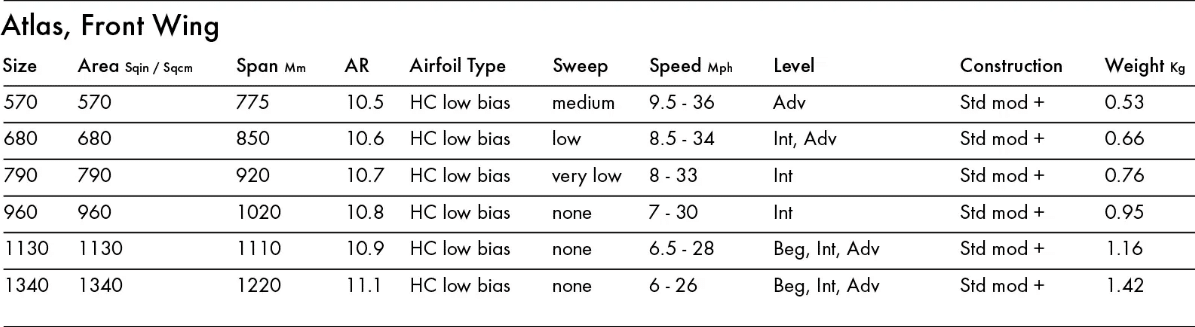

SPECIFICATIONS:
Due to the Atlas’ unique high camber profile, early lift, and stall resistance, we recommend sizing down 10-20% compared to other foils on the market.
