DESCRIPTION
From your first Take-Off to Frequent Flyer in no time! Our Flow Windsurf Foils got completely redesigned for the new season to cover your Windsurf foiling experience all the way from beginner to performance level.
Key Features
- Carbon front wings with 30° layup for maximum performance with direct flex response and minimal weight
- Full carbon back wing with winglets – light, fast and with great track stability
- Formula 1 aluminium fusion technology mast – made in Germany – with special profile and increased chord length for 30% higher stiffness compared to other Alu masts
- Alu Fuselage with extra large mounting area for bulletproof connections and maximum load spread
- Helicoil-threads in mast and fuselage for longevity and maximum strength connections
- Glued and screwed connection of mast and base plate for extra rigid connection and maximum durability
- Interchangeable wings for upgrades and tuning according to conditions and rider level
- Fuselage > Wing connection without pockets – not getting stuck, no wearing out
- Individual tuning through supplied wedges – changes angle of attack
- 4-way track system base plate
- Mounting adapters for both Tuttle and Power Box available*
- Flow Foil Bag including covers for wings, mast and fuselage for safe transport of your foil and all accessories
SPECS

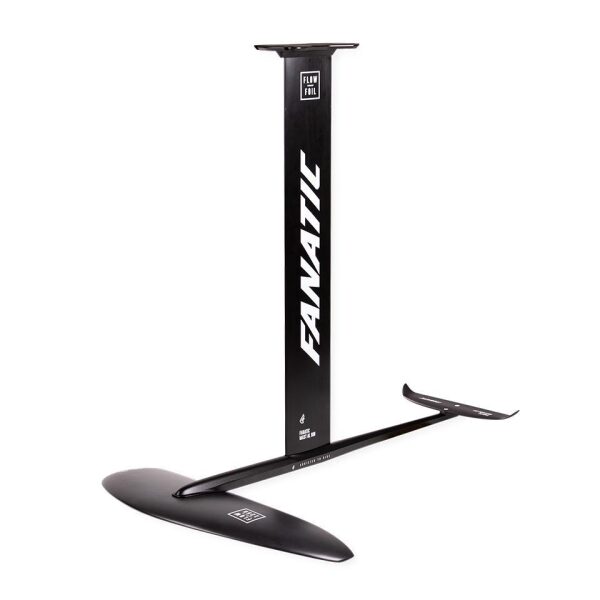

| FLOW FOIL 900 | FOIL FLOW 1250 | |
|
Mast Length |
90 cm |
90 cm |
|
Fuselage Length |
90 cm |
90 cm |
|
Front Wing Wingspan |
812 mm |
740 mm |
|
Front Wing Surface |
900 cm² |
1250 cm² |
| Back Wing Wingspan |
359 mm |
359 mm |
|
Box System |
4 Way System M8 |
4 Way System M8 |
|
Material |
Aluminium Mast & Fuselage / Carbon Wings |
Aluminium Mast & Fuselage / Carbon Wings |
TECHNOLOGY

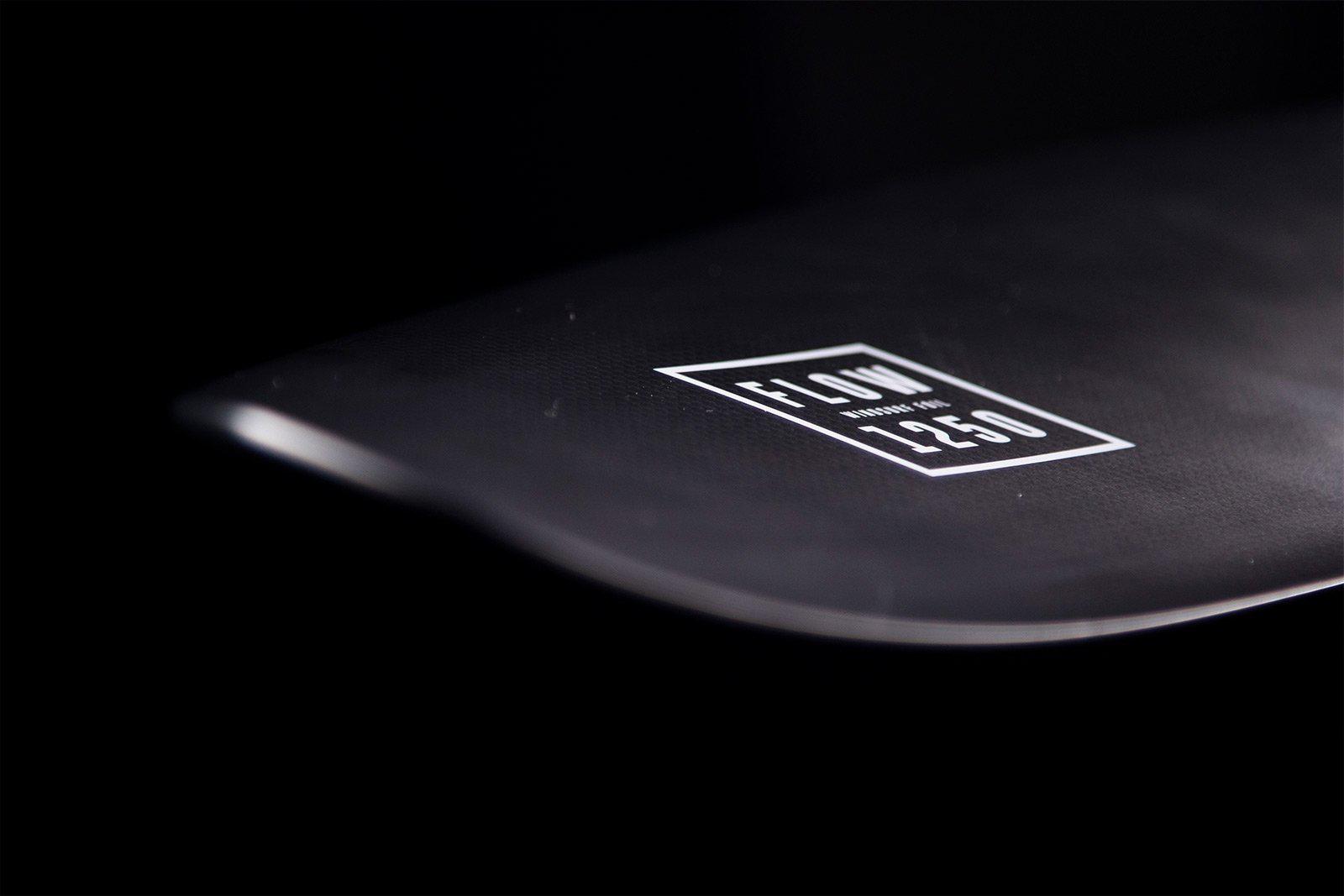

WINGS
+ 30° Layup orientation for maximum bending and torsional stiffness
+ Maximum performance
+ Light weight construction
+ Front Wing with molded foam core and solid Carbon centre piece for bullet proof connections
+ Back Wing solid UD Carbon

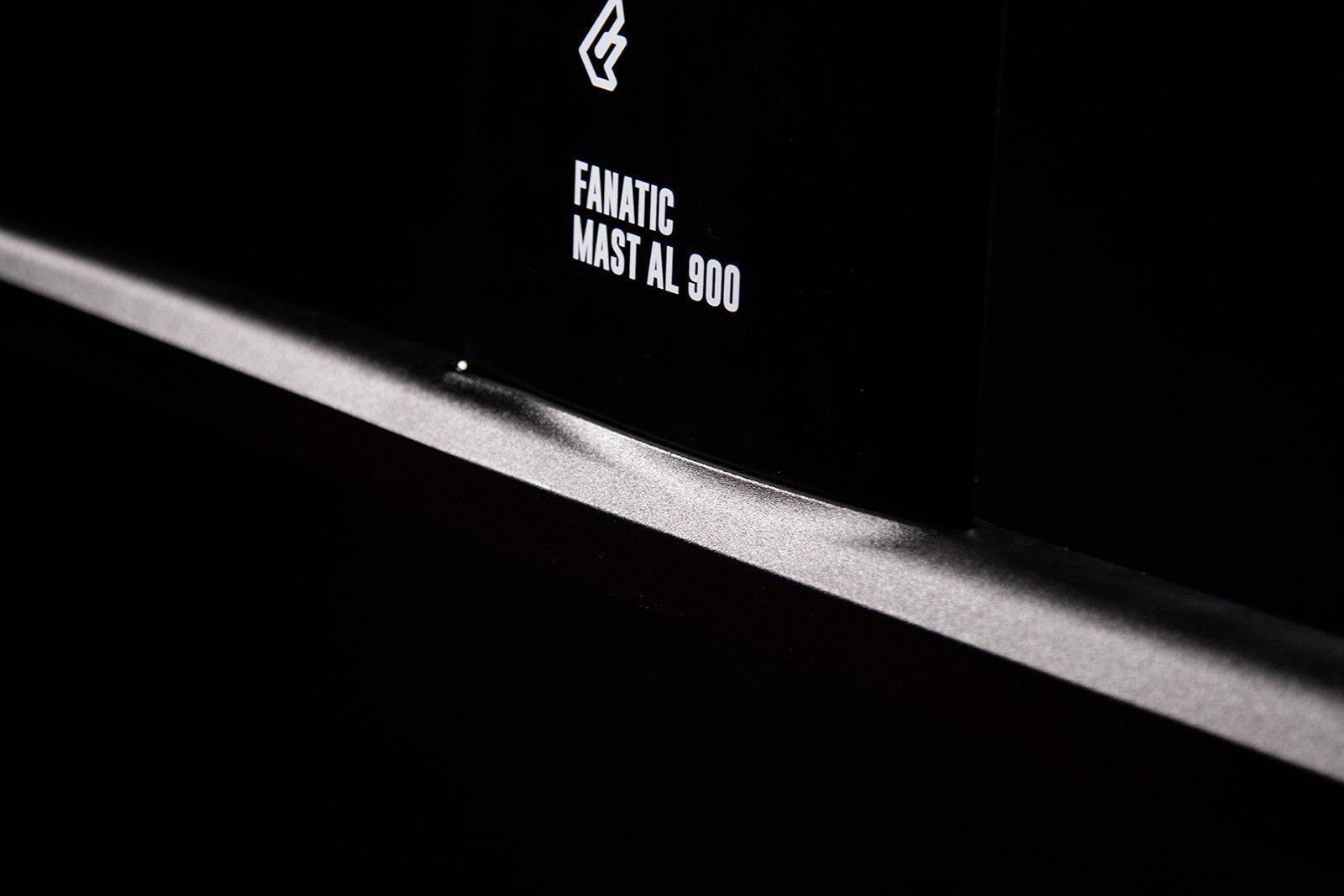

MAST
+ High grade Aluminium mast made in Germany
+ Wider chord length and special profile
+ About 30% stiffer than other Aluminium masts
+ “Feels like Carbon”
+ No loss of power when pumping
MAST > BASE PLATE CONNECTION
+ Formula 1 Aluminium Fusion Technology – Made in Germany
+ Glued AND screwed connection of mast and base
+ Ultra rigid
+ Highly durable
+ Feels like one piece
SCREWED CONNECTIONS
+ Stainless Steel Heli Coil inserts in all screwed connections
+ Takes 1.2 tons of load per M8 screw
+ Bulletproof
+ No corrosion between screw and thread
+ Heli Coils Replacable

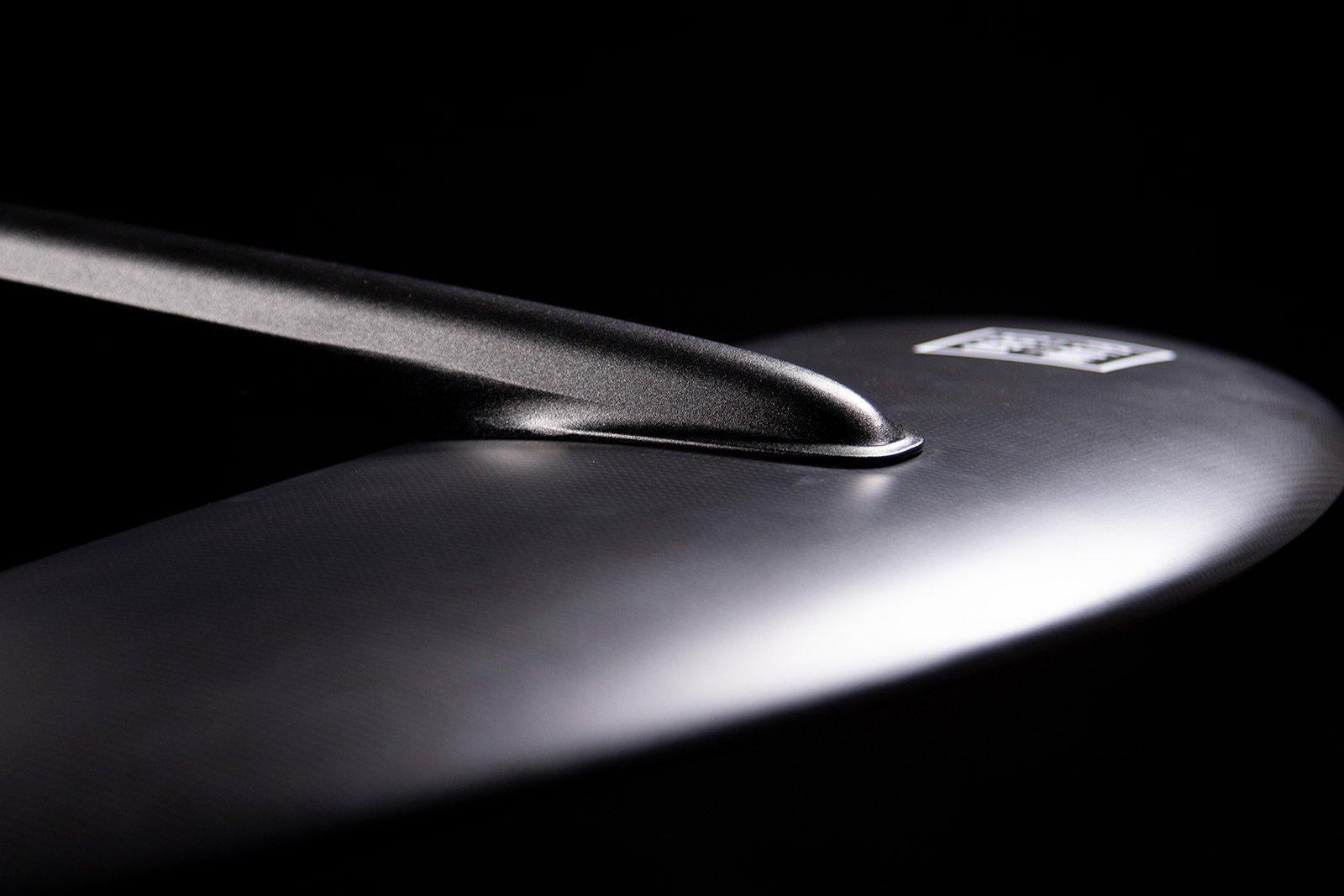

FRONT WING CONNECTION
+ Large mounting area for maximum load spread
+ No wearing out
+ Not getting stuck – No Hammer needed!
+ Recess in front wings for neat fit
TUNING THROUGH WEDGES
+ 4 different Wedges supplied for individual tuning
+ Tune any combination of Wings
+ Tune to any board / box position
